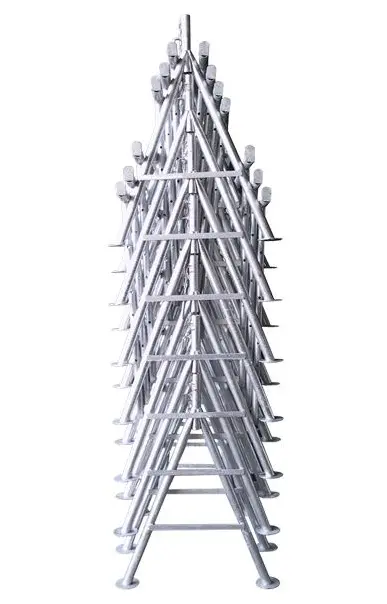

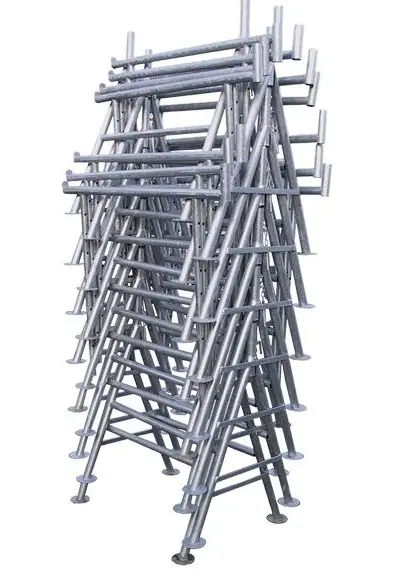

The Industrial Adjustable Steel Trestle is a high-capacity, multi-functional support system engineered for heavy-duty construction, masonry, and industrial maintenance. Designed to provide a stable elevated platform, this system is optimized for use with timber scaffold boards or aluminum/plywood staging. Unlike lightweight consumer-grade horses, this trestle is fabricated from high-tensile structural steel, ensuring maximum durability in rigorous site environments.

Send Inquiry

Product Description

✓Technical Specifications

To ensure precise engineering alignment, the following specifications define the standard build of our steel trestles:

Material Composition

High-grade S235/S355 Carbon Steel.

Surface Treatment

Hot-Dip Galvanized (HDG) to BS EN ISO 1461 standards for superior corrosion resistance, or high-durability Powder Coating.

Load Capacity

Tested for Safe Working Loads (SWL) up to 450kg per pair (depending on height extension).

Height Adjustability

Multi-stage locking pin system with a typical range of 0.8m to 1.4m (Custom ranges available).

Top Rail Width

Standard 0.9m to 1.1m to accommodate up to 4 standard scaffold boards side-by-side.

Locking Mechanism

High-shear strength steel captive pins with galvanized retaining chains.

Frequently Asked Questions (FAQ)

Q1: What materials are used in the construction of these trestles?

Our steel trestles are manufactured using premium-grade S235/S355 carbon steel, ensuring high structural integrity and durability for heavy-duty construction use.

Q2: How is the steel protected against rust and weather damage?

We offer two main surface treatments: Hot-Dip Galvanization (HDG) compliant with BS EN ISO 1461 for maximum corrosion protection, or high-durability powder coating for specific environmental needs.

Q3: What is the maximum load capacity for a pair of trestles?

The Safe Working Load (SWL) is tested up to 450kg per pair, though this may vary depending on the specific height extension and model chosen.

Q4: Are the height settings adjustable for uneven ground?

Yes, our trestles feature a multi-stage locking pin system, typically allowing for height adjustments between 0.8m and 1.4m to suit various project requirements.

Q5: How many scaffold boards can the top rail accommodate?

The standard top rail width ranges from 0.9m to 1.1m, which is designed to securely hold up to four standard-sized scaffold boards side-by-side.

Q6: What safety features are included in the locking mechanism?

For maximum safety, we use high-shear strength steel captive pins. These are attached to galvanized retaining chains to prevent loss and ensure the trestle remains securely locked during use.
