Fast Installation and dismantling result in time and labour saving, easy installation with no loose components, low maintenance, quick, fastening of horizontals.
Four horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid, versatile use in construction, demolition or maintenance projects for any type of structure, Lightweight but high loads carrying capacity per vertical axial load to 57kN and Safety with proven track record.
No loose parts and with corrosion protection easily stored and maintained. Cuplock designed is highly resistance to damage.

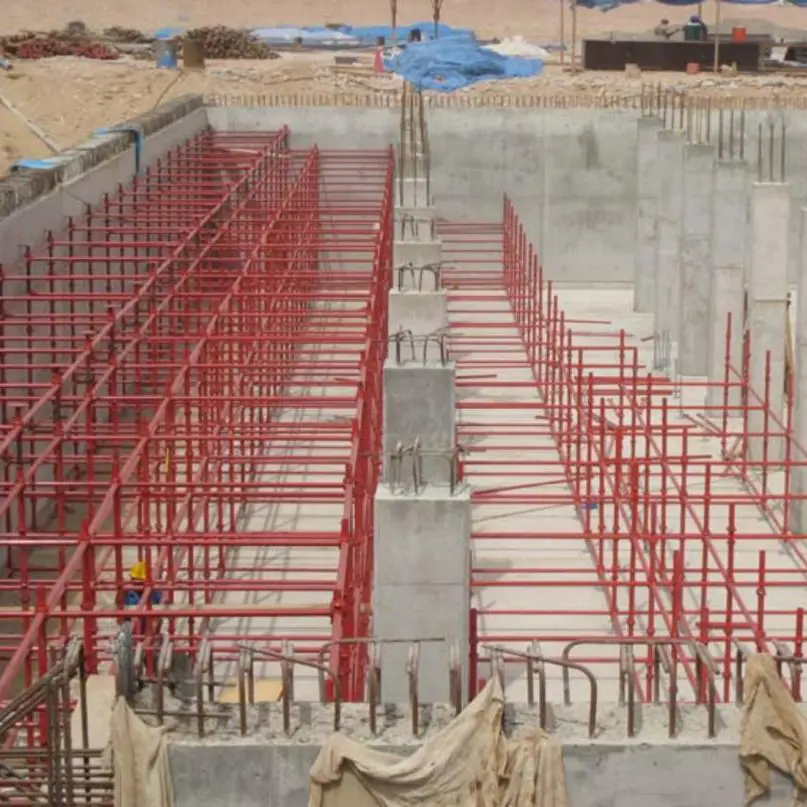

Cuplock can be erected for straight, curved and circular configuration for both access and support.
The success of cuplock lies in the node point or fastening method. Four horizontal can be fastened at onetime making a very rigid connection.
The horizontal bear directly on the verticals and are firmly clamped by the action of the cup. There are no loose parts to lose. The rigid node point allows for high horizontal loads experienced with a 57kN leg load. The locking device is formed by two cups, a fixed lower cup which is welded to the vertical component at pre-located intervals and sliding top cup.

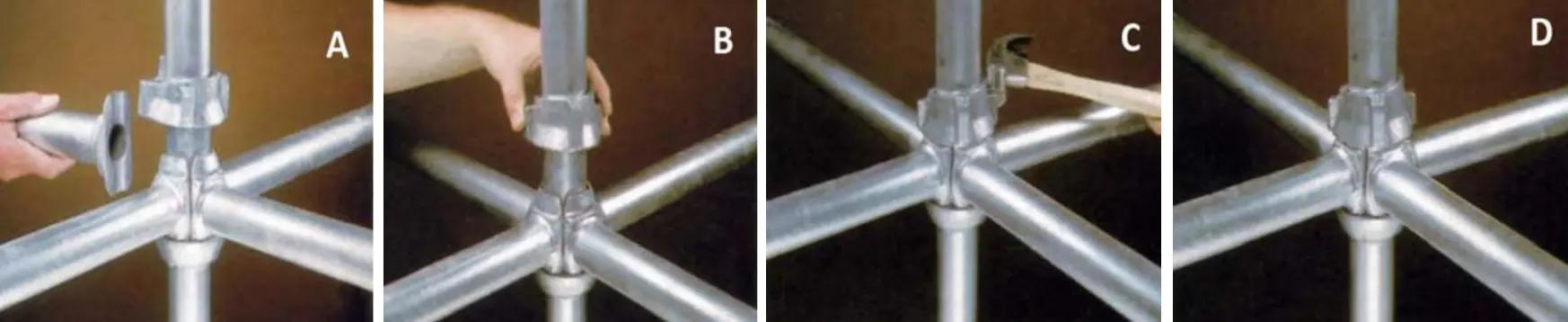

The forged ledger blade ends of the Cuplock horizontal components are located into the lower bottom cup, the top cup is moved down and rotated to secure the components are in place and a hammer blow the results in a positive rigid connection.
Complete scaffold towers can be moved horizontally using special trolley and rail, then simply crane lifted to the next location, saving time and labor costs.
